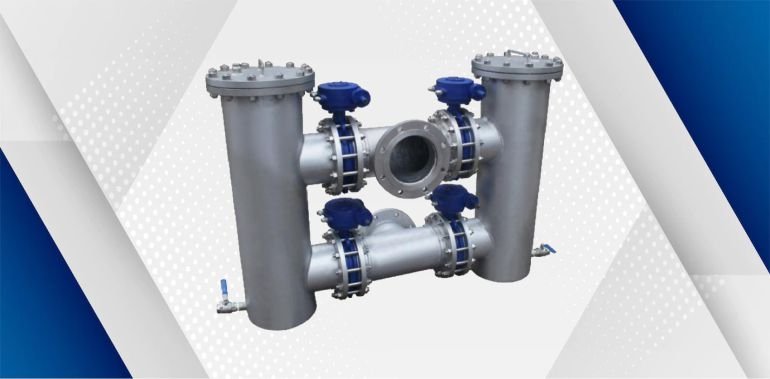

Duplex strainer - Butterfly valves

welded design, strainer element: basket with fine sieve, standard with flanges according to DIN EN 1092-1 / 01

• clean liquid, viscous and gaseous media
• protection pipe systems, fittings and industrial systems
• butterfly valves for uninterrupted production process
  by manual switchable filter unit
• easy cleaning of filter elements
• extensive accessories and technical equipment
• welded connections according DIN EN 12627 / ANSI
• various surface coating and special materials
• design, mesh size for filter inserts to customer specifications
• design according to Pressure Equipment Directive 2014/68/EU

Standard – Butterfly valves
Body: Steel (blue, RAL5010) / Stailess steel (pickled, passivated)
Basket: Stainless steel (1.4301) with square perforation Qg 10-12, Fine sieve 1 mm Vent socket in the cap, drain socket in the dished end Manual switching unit with 4 2-way- or 2 3-way ball valves Angle stand with mounting holes
Body: Steel (blue, RAL5010) / Stailess steel (pickled, passivated)
Basket: Stainless steel (1.4301) with square perforation Qg 10-12, Fine sieve 1 mm Vent socket in the cap, drain socket in the dished end Manual switching unit with 4 butterfly valves Angle stand with mounting holes
