Compliance Standards

Trunnion-mounted Ball Valves are designed in accordance with key international standards. They also meet the requirements of major power and oil & gas industry standards and customer specifications.

Parameter Standard
Design API 6D/ ISO 14313/ API 608
Pressure - Temperature Rating ASME B16.34
Ends Face-to-face/ End-to-end Dimensions API 6D/ ASME B16.10
End Flange Dimensions ASME B16.5/ ASME B16.47
Butt-weld End Dimensions ASME B16.25
Testing Hydrostatic API 6D/ API 598
Fire Test API 6FA/ API 607/ ISO 10497
Cryo Test BS 6364

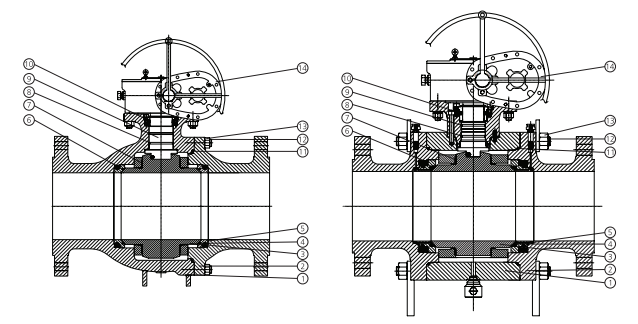

Materials of Construction

No. Components Materials
WCB/ WC LCB/ LCC
1 Body A105N/ A216 Gr. WCB/ WCC A350 Gr. LF2/
A352 Gr. LCB/ LCC
2 Connector A105N/ A216 Gr. WCB/ WCC A350 Gr. LF2/
A352 Gr. LCB/ LCC
3 Ball A182 Gr. F6a/ A105N + ENP Coated/
A182 Gr. F316/ F316L		 A182 Gr. F316/ F316L/
A351 Gr. CF8M/ CF3M
4 Seat PTFE/ RPTFE/ Nylon impregnated with MoS2 / PEEK/ Devlon®/ PCTFE
5 Seat Ring A182 Gr. F6a/ A182 Gr. F316/ F316L A182 Gr. F316/ F316L
6 Coil Spring Inconel X750
7 Bearing SS-backed PTFE
8 Seals FKM (Viton®)/ HNBR/ Nitrile Rubber/ FFKM (Kalrez®) / Lipseals/ Graphite
9 Stem A479 Type 410/ A479 Type 316/ 316L A479 Type 316/ 316L
10 Packing Graphite
11 Body Seal Graphite/ Spirally-wound SS304/ 316 with Graphite Filler
12 Stud A193 Gr. B7/ B7M A320 Gr. L7/ L7M
13 Hexagonal Nut A194 Gr. 2H/ 2HM/ 7 A194 Gr. 7/ 7M
14 Gear Unit Worm Gear

Valves in other materials available on demand

Trunnion-mounted Ball Valves



No. Components Materials
CF8M/ CF3M Gr. 4A/ 5A (Duplex SS) Inconel 625
1 Body A182 Gr. F316/
A351 Gr. CF8M/ CF3M		 A182 Gr. F51/ F53/ A995 Gr. 4A/ 5A B564 UNS N06625/ A494 UNS N26625 (CW6MC)
2 Connector A182 Gr. F316/
A351 Gr. CF8M/ CF3M		 A182 Gr. F51/ F53/
A995 Gr. 4A/ 5A		 B564 UNS N06625/
A494 UNS N26625 (CW6MC)
3 Ball A182 Gr. F316/ F316L A182 Gr. F51/ F53 B564 UNS N06625
4 Seat PTFE/ RPTFE/ Nylon impregnated with MoS2 / PEEK/ Devlon®/ PCTFE
5 Seat Ring A182 Gr. F316/ F316L A182 Gr. F51/ F53 B564 UNS N06625
6 Coil Spring Inconel X750
7 Bearing SS-backed PTFE Duplex SS-backed PTFE/
Inconel 625-backed PTFE		 Inconel 625-backed PTFE
8 Seals FKM (Viton®)/ HNBR/ Nitrile Rubber/ FFKM (Kalrez®) / Lipseals/ Graphite
9 Stem A479 Type 316/ 316L A182 Gr. F51/ F53 B564 UNS N06625
10 Packing Graphite
11 Stud A193 Gr. B8M Cl. 2 A193 Gr. B8M Cl. 2/
A453 Gr. 660 Cl. A		 A193 Gr. B8M Cl. 2/
A453 Gr. 660 Cl. A
12 Hexagonal Nut A194 Gr. 8M/ 8MA A194 Gr. 8M/ 8MA/
A453 Gr. 660 Cl. A		 A194 Gr. 8M/ 8MA/
A453 Gr. 660 Cl. A
13 Gear Unit Worm Gear

Trunnion-mounted Ball Valves

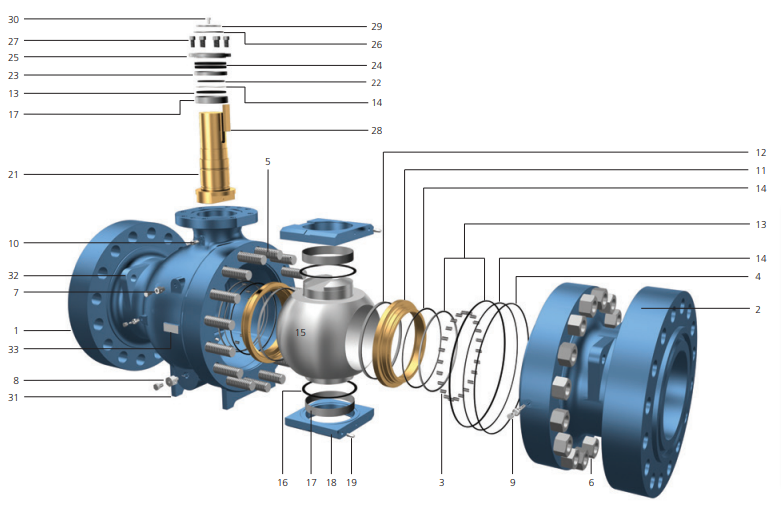

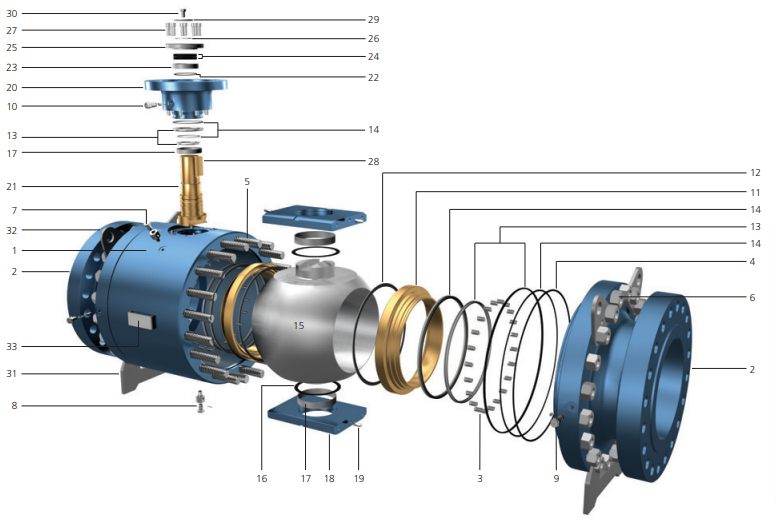

2-piece Trunnion-mounted Ball Valve

1 - Body 7 - Vent Plug 13 - O-ring 19 - Pin 25 - Gland 31 - Foot Support
2 - Connector 8 - Drain Plug 14 - Back-up Ring 20 - Stem Housing 26 - Circlip 32 - Lifting Lug
3 - Coil Spring 9 - Seat Sealant Injector 15 - Ball 21 - Stem 27 - Soc Head Cap Screw 33 - Name Plate
4 - Body Seal 10 - Stem Sealant Injector 16 - Thrust Washer 22 - Thrust Bearing 28 - Key
5 - Stud 11 - Seat Ring 17 - Bearing 23 - Junk Ring 29 - Washer
6 - Hex Nut 12 - Seat 18 - Bearing Block 24 - Packing 30 - Hex Head Screw

3-piece Trunnion-mounted Ball Valve

Trunnion-mounted Ball Valves

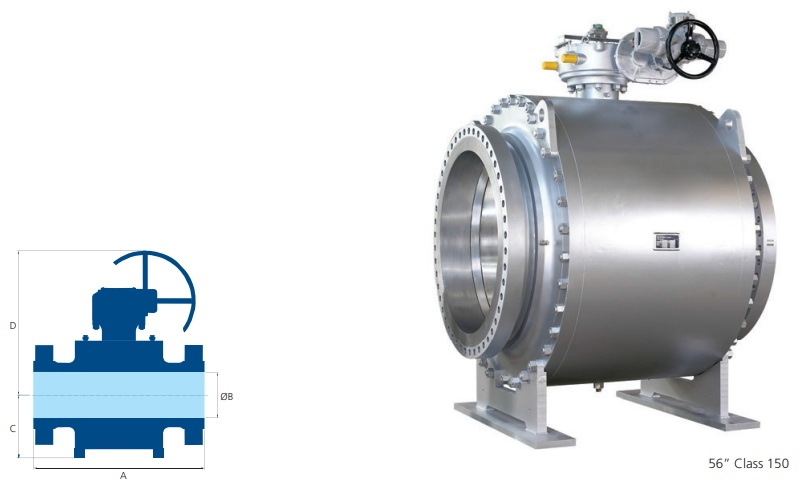

ASME Class 150

Full Bore

Trunnion-mounted Ball Valves



Size 2-piece 3-piece
A B C D Wt. A B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
2 178 191 216 49 60 160 20 16 - - - - - - - -
3 203 216 283 74 90 260 35 30 - - - - - - - -
4 229 241 305 100 105 280 45 40 - - - - - - - -
6 394 406 457 150 160 485 140 120 - - - - - - - -
8 457 470 521 201 215 595 235 205 457 470 521 201 320 600 290 260
10 533 546 559 252 265 635 340 300 533 546 559 252 390 690 430 390
12 610 622 635 303 310 720 530 465 610 622 635 303 410 710 620 560
14 686 699 762 334 340 745 680 595 686 699 762 334 445 760 810 730
16 762 775 838 385 380 790 870 760 762 775 838 385 490 785 1040 935
18 864 876 914 436 430 885 1280 1130 864 876 914 436 535 830 1310 1180
20 914 927 991 487 490 940 1625 1425 914 927 991 487 590 920 1860 1675
24 1067 1080 1143 589 555 1010 2460 2150 1067 1080 1143 589 655 1000 3120 2817
28 - - - - - - - - 1245 - 1346 684 820 1130 4395 3955
30 - - - - - - - - 1295 - 1397 735 830 1190 5500 4975
32 - - - - - - - - 1372 - 1524 779 885 1255 6425 5780
36 - - - - - - - - 1524 - 1727 874 960 1400 8460 7615
40 - - - - - - - - 1753 - 1956 976 1020 1530 12120 10910
42 - - - - - - - - 1855 - 2083 1020 1080 1560 13630 12270
48 - - - - - - - - 2134 - 2170 1166 1130 1700 20680 18500
56 - - - - - - - - 2489 - 2489 1360 1350 2000 34210 30790

All dimensions in mm and weights in kg

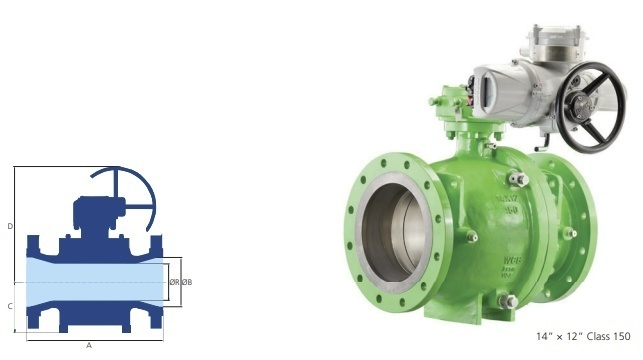

ASME Class 150

Reduced Bore

Trunnion-mounted Ball Valves

Size 2-piece 3-piece
A R B C D Wt. A R B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
3 x 2 203 216 283 49 74 75 230 23 18 - - - - - - - - -
4 x 3 229 241 305 74 100 90 260 40 35 - - - - - - - - -
6 x 4 394 406 457 100 150 130 345 75 60 - - - - - - - - -
8 x 6 457 470 521 150 201 160 485 165 140 - - - - - - - - -
10 x 8 533 546 559 201 252 215 595 260 230 533 546 559 201 252 320 600 325 290
12 x 10 610 622 635 252 303 265 635 360 320 610 622 635 252 303 390 690 495 445
14 x 10 686 699 762 252 334 265 635 425 375 686 699 762 252 334 390 690 525 470
14 x 12 686 699 762 303 334 310 720 560 490 686 699 762 303 334 410 710 670 605
16 x 12 762 775 838 303 385 325 720 620 580 762 775 838 303 385 410 710 720 650
16 x 14 762 775 838 334 385 340 745 725 645 762 775 838 334 385 445 760 830 750
18 x 14 864 876 914 334 436 340 745 865 765 864 876 914 334 436 445 760 980 890
20 x 16 914 927 991 385 487 380 790 945 825 914 927 991 385 487 490 785 1190 1070
20 x 18 914 927 436 487 430 380 885 1475 1400 914 927 991 436 487 535 830 1625 1500
24 x 20 1067 1080 1143 487 589 480 940 1850 1640 1067 1080 1143 487 589 590 920 2070 1860
28 x 24 1245   1346 589 684 555 1010 3540 3190 1245 - 1346 589 684 655 1000 4100 3760
30 x 24 1295   1397 589 735 555 1010 4260 3800 1295 - 1397 589 735 655 1000 5025 3600
36 x 30 - - - - - - - - - 1524 - 1727 735 874 830 1190 6250 5625
42 x 36 - - - - - - - - - 1855 - 2083 874 1020 960 1400 * *
48 x 42 - - - - - - - - - 2134 - 2170 1020 1166 1080 1560 * *
56 x 48 - - - - - - - - - 2489 - 2489 1166 1360 1185 1690 * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights



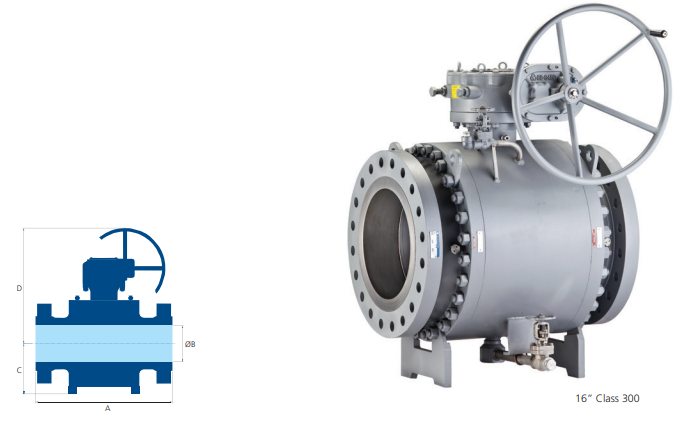

ASME Class 300

Full Bore

Trunnion-mounted Ball Valves

Size 2-piece 3-piece
A B C D Wt. A B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
2 216 232 216 49 75 250 25 20 - - - - - - - -
3 283 298 283 74 90 260 45 40 - - - - - - - -
4 305 321 305 100 130 380 75 65 - - - - - - - -
6 403 419 457 150 165 485 180 160 - - - - - - - -
8 502 518 521 201 235 595 290 255 502 518 521 201 360 610 355 320
10 568 584 559 252 275 665 445 405 568 584 559 252 380 650 530 475
12 648 664 635 303 320 720 660 595 648 664 635 303 420 730 835 760
14 762 778 762 334 360 820 900 800 762 778 762 334 460 760 1010 910
16 838 854 838 385 390 850 980 850 838 854 838 385 490 850 1390 1250
18 914 930 914 436 445 900 1620 1450 914 930 914 436 545 890 1805 1640
20 991 1010 991 487 490 1005 2010 1790 991 1010 991 487 610 940 2290 2065
24 1143 1165 1143 589 575 1080 3010 2710 1143 1165 1143 589 685 1075 3525 3200
28 - - - - - - - - 1346 1372 1346 684 825 1240 5310 4770
30 - - - - - - - - 1397 1422 1397 735 1860 1310 6310 5680
32 - - - - - - - - 1524 1553 1524 779 890 1430 7420 6680
36 - - - - - - - - 1727 1756 1727 874 970 1480 10265 8645
40 - - - - - - - - 1956 - 1956 976 1040 1560 12980 11680
42 - - - - - - - - 2083 - 2083 1020 1080 1650 14645 13000
48 - - - - - - - - 2170 - 2170 1166 1210 1770 22460 20215
56 - - - - - - - - 2743 - 2743 1360 1400 2000 38285 34455

All dimensions in mm and weights in kg

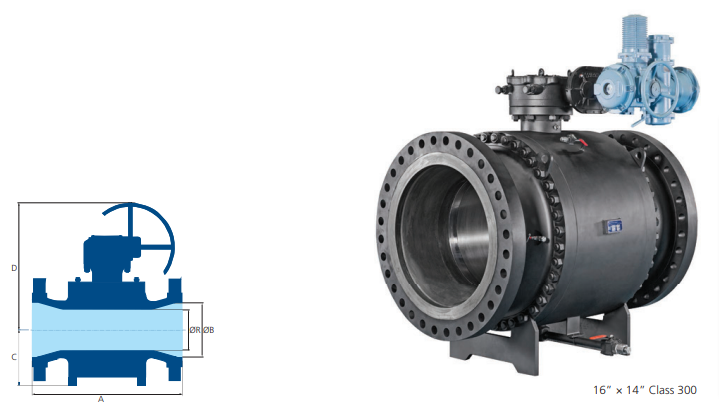

ASME Class 300

Reduced Bore

Trunnion-mounted Ball Valves

Size 2-piece 3-piece
A R B C D Wt. A R B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
3 x 2 283 298 283 49 74 75 250 30 25 - - - - - - - - -
4 x 3 305 321 305 74 100 90 260 55 45 - - - - - - - - -
6 x 4 403 419 457 100 150 130 380 100 90 - - - - - - - - -
8 x 6 502 518 521 150 201 165 485 190 170 - - - - - - - - -
10 x 8 568 584 559 201 252 235 595 310 270 568 584 559 201 252 360 610 400 365
12 x 10 648 664 635 252 303 275 665 470 410 648 664 635 252 303 380 650 585 535
14 x 10 762 778 762 252 334 275 665 620 550 762 778 762 252 334 380 650 648 585
14 x 12 762 778 762 303 334 320 720 740 655 762 78 762 303 334 420 730 840 755
16 x 12 838 854 838 303 385 350 720 765 670 838 854 838 303 385 420 730 990 890
16 x 14 838 854 838 334 385 360 820 990 880 838 854 838 334 385 460 760 1100 990
18 x 14 914 930 914 334 436 385 820 1210 1070 914 930 914 334 436 460 760 1360 1225
18 x 16 914 930 914 385 436 390 850 1350 1190 914 930 914 385 436 490 850 1590 1430
20 x 16 991 1010 991 385 487 400 850 1480 1310 991 1010 991 385 487 490 850 1695 1525
20 x 18 991 1010 991 436 487 445 900 1870 1680 991 1010 991 436 487 545 890 2075 1900
22 x 18 1092 1114 1092 436 538 445 900 2050 1820 1092 1114 1092 436 538 545 890 2200 2000
24 x 20 1143 1165 1143 487 589 490 1005 2560 2285 1143 1165 1143 487 589 610 940 2945 2690
28 x 24 1346 1372 1346 589 684 575 1080 3905 3525 1346 1372 1346 589 684 650 1080 4500 4180
30 x 24 1397 1422 1397 589 735 575 1080 4900 4350 1397 1422 1397 589 735 650 1080 5635 5180
36 x 30 - - - - - - - - - 1727 1756 1727 735 874 860 1310 8260 7435
42 x 36 - - - - - - - - - 2083 - 2083 874 1020 970 1480 9200 8280
48 x 42 - - - - - - - - - 2170 - 2170 1020 1166 1080 1650 * *
56 x 48 - - - - - - - - - 2743 - 2743 1166 1360 1185 1710 * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights

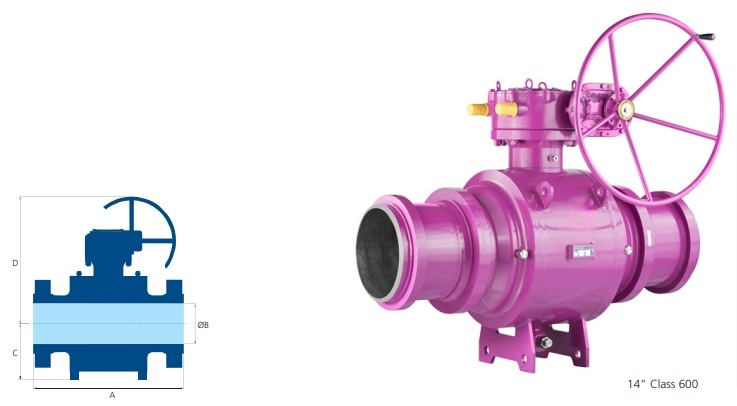

ASME Class 600

Full Bore

Trunnion-mounted Ball Valves

Size 2-piece 3-piece
A B C D Wt. A B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
2 292 295 292 49 75 250 35 30 - - - - - - - -
3 356 359 356 74 105 355 65 55 - - - - - - - -
4 432 435 432 100 130 450 110 100 - - - - - - - -
6 559 562 559 150 175 565 295 270 - - - - - - - -
8 660 664 660 201 235 645 450 400 660 664 660 201 340 575 480 435
10 787 791 787 252 310 765 745 670 787 791 787 252 390 735 820 745
12 838 841 838 303 355 810 970 870 838 841 638 303 450 950 1130 1035
14 889 892 889 334 380 840 1330 1210 889 892 889 334 470 960 1480 1365
16 991 994 991 385 425 935 1570 1405 991 994 991 385 530 1060 1915 1760
18 1092 1095 1092 436 475 1060 2350 2130 1092 1095 1092 436 570 1065 2240 2025
20 1194 1200 1194 487 530 1130 2965 2685 1194 1200 1194 487 600 1190 2290 2420
24 1397 1407 1394 589 600 1265 4500 4050 1397 1407 1397 589 740 1285 5445 4990
28 - - - - - - - - 1549 1562 1549 684 840 1300 7485 6825
30 - - - - - - - - 1651 1664 1651 735 900 1310 9880 9090
32 - - - - - - - - 1778 1794 1778 779 940 1340 11850 10515
36 - - - - - - - - 2083 2099 2083 874 1010 1390 14780 11245
40 - - - - - - - - 2337 2350 2337 976 1040 1540 17200 15480
42 - - - - - - - - 2437 2450 2437 1020 1080 1670 19790 17810
48 - - - - - - - - 2540 2553 2540 1166 1260 1720 28985 26085
56 - - - - - - - - 2949 2962 2949 1360 1450 2100 47665 42900

All dimensions in mm and weights in kg

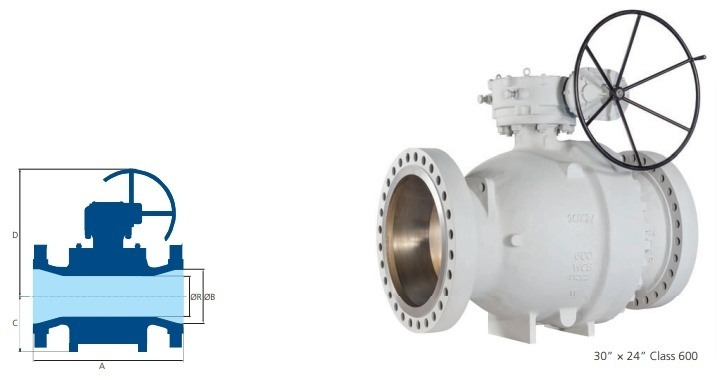

ASME Class 600

Reduced Bore

Trunnion-mounted Ball Valves

Size 2-piece 3-piece
A R B C D Wt. A R B C D Wt.
NPS RF RTJ BW FL BW RF RTJ BW FL BW
3 x 2 356 359 356 49 74 75 250 40 35 - - - - - - - - -
4 x 3 432 435 432 74 100 105 355 90 80 - - - - - - - - -
6 x 4 559 562 559 100 150 130 450 145 130 - - - - - - - - -
8 x 6 660 664 660 150 201 175 565 325 295 - - - - - - - - -
10 x 8 787 791 787 201 252 235 645 565 510 787 791 787 201 252 340 575 630 565
12 x 10 838 841 838 252 303 310 765 800 715 838 841 838 252 303 390 650 855 765
14 x 10 889 892 889 252 334 310 765 965 870 889 892 889 252 334 390 650 1080 975
14 x 12 889 892 889 303 334 355 810 1050 960 889 892 889 303 334 450 950 1275 1160
16 x 12 991 994 991 303 385 355 810 1170 1050 991 994 991 303 385 450 950 1355 1230
16 x 14 991 994 991 334 385 380 840 1465 1345 991 994 991 334 385 470 960 1685 1545
18 x 14 1092 1095 1092 334 436 380 840 1540 1410 1092 1095 1092 334 436 470 960 1785 1630
18 x 16 1092 1095 1092 385 436 425 935 1735 1545 1092 1095 1092 385 436 530 1060 2000 1820
20 x 16 1194 1200 1194 385 487 425 935 2065 1855 1194 1200 1194 385 487 530 1060 2130 1915
20 x 18 1194 1200 1194 436 487 475 1060 2415 2175 1194 1200 1194 436 487 570 1065 2775 2535
22 x 18 1295 1305 1295 436 538 475 1060 2675 2390 1295 1305 1295 436 538 570 1065 2945 2695
24 x 20 1397 1407 1397 487 589 530 1130 3300 3100 1397 1407 1397 487 589 600 1190 3800 3465
28 x 24 1549 1562 1549 589 684 600 1265 5250 4700 1549 1562 1549 589 684 740 1285 6040 5615
30 x 24 1651 1664 1651 589 735 600 1265 6780 6100 1651 1664 1651 589 735 740 1285 7800 7255
36 x 30 - - - - - - - - - 2083 2099 2083 735 874 900 1310 9845 8860
42 x 36 - - - - - - - - - 2437 2450 2437 874 1020 1010 1390 11100 9990
48 x 42 - - - - - - - - - 2540 2553 2540 1020 1166 1030 1670 * *
56 x 48 - - - - - - - - - 2949 2962 2949 1166 1360 1260 1270 * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights

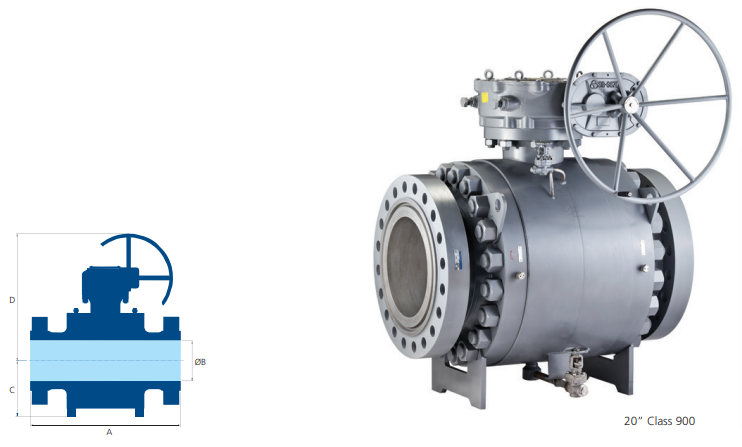

ASME Class 900

Full Bore

Trunnion-mounted Ball Valves

Size A B C D Wt. Design
NPS RF RTJ BW FL BW
2 368 371 368 49 95 335 65 60 2-piece
3 381 384 381 74 120 435 85 70
4 457 460 457 100 145 545 160 145
6 610 613 610 150 195 620 350 320
8 737 740 737 201 360 670 650 590 3-piece
10 838 841 838 252 410 770 915 820
12 965 968 965 303 460 865 1430 1300
14 1029 1038 1029 322 500 910 1600 1445
16 1130 1140 1130 373 545 940 2195 1970
18 1219 1232 1219 423 580 1060 3150 2860
20 1321 1334 1321 471 650 1215 4880 4475
24 1549 1568 1549 570 690 1305 7300 6655
28 1753 1775 1753 665 825 1410 10125 9110
30 1880 1902 1880 712 890 1450 12030 10830
32 2032 2054 2032 760 910 1460 14024 12620
36 2286 2315 2286 855 965 1475 20075 18070

All dimensions in mm and weights in kg

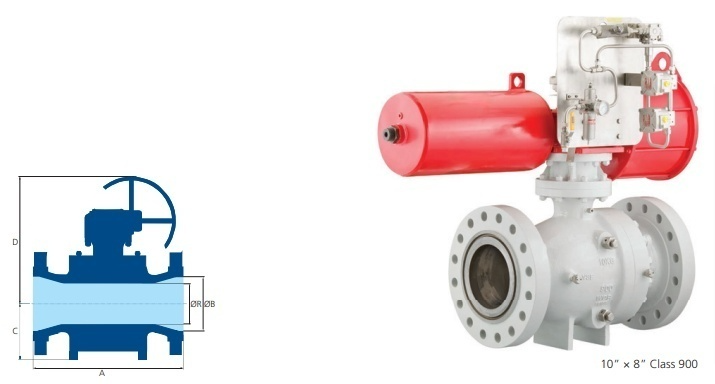

ASME Class 900

Reduced Bore

Trunnion-mounted Ball Valves

Size A R B C D Wt. Design
NPS RF RTJ BW FL BW
3 x 2 381 384 381 49 74 95 335 70 65 2-piece
4 x 3 457 460 457 74 100 120 435 110 100
6 x 4 610 613 610 100 150 145 545 210 190
8 x 6 737 740 737 150 201 195 620 380 335
10 x 8 838 841 838 201 252 360 670 750 705 3-piece
12 x 10 965 968 965 252 303 410 770 1055 980
14 x 10 1029 1038 1029 252 322 410 770 1120 1050
14 x 12 1029 1038 1029 303 322 460 865 1515 1375
16 x 12 1130 1140 1130 303 373 460 865 1610 1455
16 x 14 1130 1140 1130 322 373 500 910 1770 1585
18 x 14 1219 1232 1219 322 423 500 910 1830 1650
18 x 16 1219 1232 1219 373 423 545 940 2525 2310
20 x 16 1321 1334 1321 373 471 545 940 2680 2445
20 x 18 1321 1334 1321 423 471 580 1060 3625 3330
24 x 20 1549 1568 1549 471 570 650 1215 5175 4845
28 x 24 1753 1775 1753 570 665 690 1305 7740 7245
30 x 24 1880 1902 1880 570 712 690 1305 8205 7450
36 x 30 2286 2315 2286 712 855 890 1450 12755 11900
42 x 36 * * * 855 1006 965 1475 21300 19740
48 x 42 * * * 855 1006 1010 1500 * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights

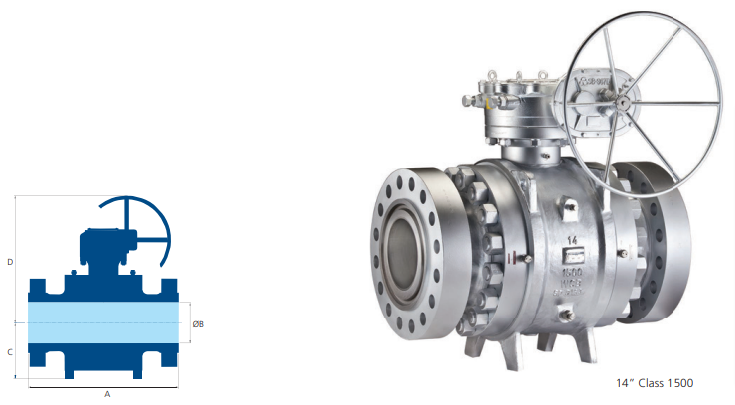

ASME Class 1500

Full Bore

Trunnion-mounted Ball Valves

Size A B C D Wt. Design
NPS RF RTJ BW FL BW
2 368 371 368 49 95 340 70 60 2-piece
3 470 473 470 74 125 445 110 95
4 546 549 546 100 180 605 265 240
6 705 711 705 144 225 645 490 440
8 832 841 832 192 390 750 935 855 3-piece
10 991 1000 991 239 475 875 1800 1650
12 1130 1146 1130 287 510 1020 2580 2355
14 1257 1276 1257 315 550 1060 3350 3055
16 1384 1407 1384 360 620 1185 4190 3770
18 1537 1559 1537 406 645 1235 6330 5695
20 1664 1686 1664 454 785 1305 8800 7880
24 1950 1972 1950 546 845 1465 14435 12995

All dimensions in mm and weights in kg

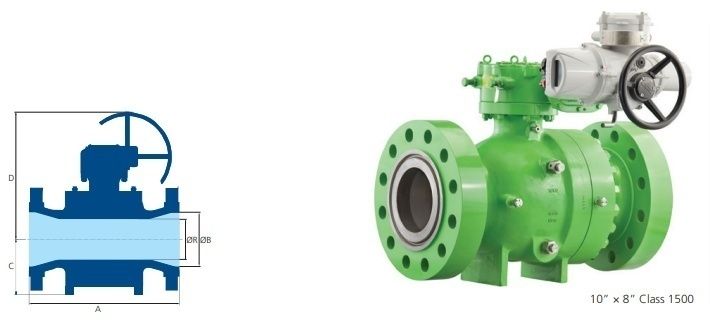

ASME Class 1500

Reduced Bore

Trunnion-mounted Ball Valves

Size A R B C D Wt. Design
NPS RF RTJ BW FL BW
3 x 2 470 473 470 49 74 95 340 85 80 2-piece
4 x 3 546 549 546 74 100 120 445 155 140
6 x 4 705 711 705 100 144 180 605 355 320
8 x 6 832 841 832 144 192 265 645 580 520
10 x 8 991 1000 991 192 239 390 750 1125 1020 3-piece
12 x 10 1130 1146 1130 239 287 475 875 1910 1745
14 x 10 1257 1276 1257 239 315 475 875 2150 1940
14 x 12 1257 1276 1257 287 315 510 1020 2740 2500
16 x 12 1384 1407 1384 287 360 510 1020 2875 2585
16 x 14 1384 1407 1384 315 360 550 1060 3725 3400
18 x 14 1537 1559 1537 315 406 550 1060 4100 3650
18 x 16 1537 1559 1537 360 406 620 1185 4900 4400
20 x 16 1664 1686 1664 360 454 625 1185 5150 4635
20 x 18 1664 1686 1664 406 454 645 1235 6710 5975
24 x 20 1950 1972 1950 454 546 785 1350 9860 8770
28 x 24 * * * 546 641 845 1465 * *
30 x 24 * * * 546 686 845 1465 * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights

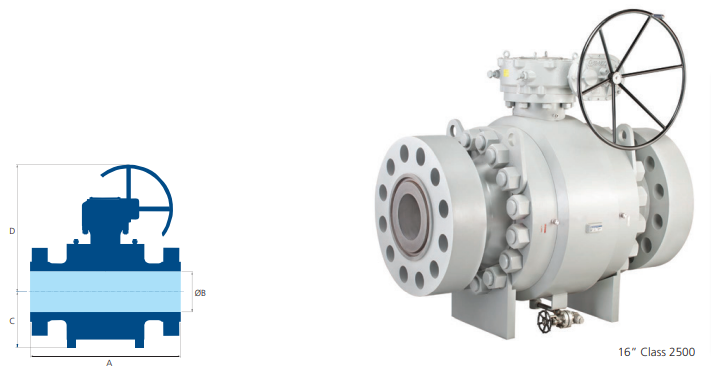

ASME Class 2500

Full Bore

Trunnion-mounted Ball Valves

Size A B C D Wt. Design
NPS RF RTJ BW FL BW
2 451 454 451 42 120 360 105 90 2-piece
3 578 584 578 62 145 525 205 170
4 673 683 673 87 185 605 370 310
6 914 927 914 131 320 750 1100 1000
8 1022 1038 1022 179 550 890 1980 1820 3-piece
10 1270 1292 1270 223 555 1045 3275 3000
12 1422 1445 1422 265 680 1125 5150 4635
14 1575 1600 1575 292 700 1235 8015 7210
16 1752 1778 1752 333 780 1350 10700 9700
18 * * * 374 * * * *

All dimensions in mm and weights in kg

* Contact Makeflow Valves for weights

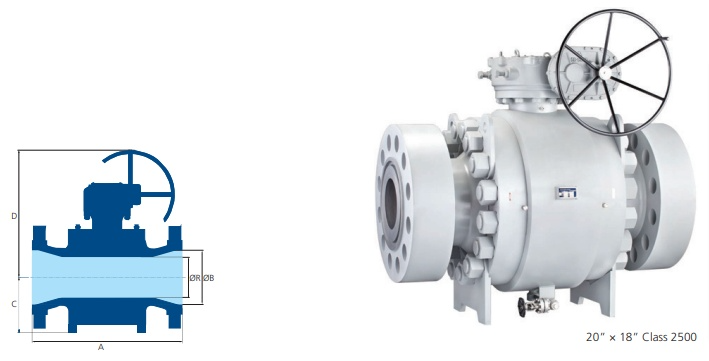

ASME Class 2500

Reduced Bore

Trunnion-mounted Ball Valves

Size A R B C D Wt. Design
NPS RF RTJ BW FL BW
3 x 2 578 584 578 42 62 120 360 170 155 2-piece
4 x 3 673 683 673 62 87 145 525 260 230
6 x 4 914 927 914 87 131 185 605 575 530
8 x 6 1022 1038 1022 131 179 320 750 1225 1120
10 x 8 1270 1292 1270 179 223 520 890 2420 2245 3-piece
12 x 10 1422 1445 1422 223 265 550 1045 3650 3350
14 x 10 1575 1600 1575 223 292 555 1045 4150 3780
14 x 12 1575 1600 1575 265 292 680 1125 5800 5380
16 x 12 1752 1778 1752 265 333 680 1125 6480 5900
16 x 14 1752 1778 1752 292 333 730 1235 8800 7900
18 x 14 2120 2145 2120 292 374 730 1235 9460 8515
18 x 16 2120 2145 2120 333 374 780 1350 11625 10450
20 x 16 2170 2195 2170 333 419 780 1350 12850 11560
20 x 18 2170 2195 2170 374 419 860 1400 15820 14470

All dimensions in mm and weights in kg



Ordering Information

Valve Bore Configuration ASME Class Ends Operator Accessories
T - TMBV F - Full Bore A - 2-piece Bolted,
Soft Seat		 2 - Cl. 150 33 - Flanged RF G - Gear Unit X - Extension
Spindle
  R - Reduced
Bore		 B - 2-piece Bolted,
PMSS*		 3 - Cl. 300 55 - Flanged RTJ N - Bare Shaft L - Locking
Device
    B - 2-piece Bolted,
PMSS*		 3 - Cl. 300 55 - Flanged RTJ N - Bare Shaft L - Locking
Device
    C - 2-piece Bolted,
Metal Seat		 6 - Cl. 600 66 - Butt-weld W - Wrench/
Lever		 S - Special
    D - 2-piece Welded,
Soft Seat		 9 - Cl. 900 36 - Flanged RF
& Butt-weld		 E - Electrical
Actuator		 I - Limit Switch
    E - 2-piece Welded,
PMSS*		 A - Cl. 1500 56 - Flanged RTJ
& Butt-weld		 P - Pneumatic
Actuator
    F - 2-piece Welded,
Metal Seat		 B - Cl. 2500   O - Gas-over-Oil
Actuator
    G - 3-piece Bolted,
Soft Seat		     H - Hydraulic
Actuator
    H - 3-piece Bolted,
PMSS*		     T - Electro -
hydraulic
Actuator
    I - 3-piece Bolted,
Metal Seat
    J - 3-piece Welded,
Soft Seat
    K - 3-piece Welded,
PMSS*
    L - 3-piece Welded,
Metal Seat
    M - Top Entry,
Soft Seat
    N - Top entry, PMSS*
    O - Top Entry,
Metal Seat
    P - Twin-isolation,
Soft Seat
    Q - Twin-isolation,
PMSS*
    R - Twin-isolation,
Metal Seat
    *PMSS - Primary Metal Seated,
Secondary Soft Seated

Related Products

Floating Ball Valve Ball Valves

Floating Ball Valve

Read more
